milvus/docs/developer_guides/chap04_message_stream.md

8. Message Stream

8.2 Message Stream Service API

type Client interface {
  CreateChannels(req CreateChannelRequest) (CreateChannelResponse, error)
  DestoryChannels(req DestoryChannelRequest) error
  DescribeChannels(req DescribeChannelRequest) (DescribeChannelResponse, error)
}

• CreateChannels

type OwnerDescription struct {
  Role string
  Address string
  //Token string
  DescriptionText string
}

type CreateChannelRequest struct {
  OwnerDescription OwnerDescription
  NumChannels int
}

type CreateChannelResponse struct {
  ChannelNames []string
}

• DestoryChannels

type DestoryChannelRequest struct {
	ChannelNames []string
}

• DescribeChannels

type DescribeChannelRequest struct {
	ChannelNames []string
}

type ChannelDescription struct {
  ChannelName string
  Owner OwnerDescription
}

type DescribeChannelResponse struct {
  Descriptions []ChannelDescription
}

A.3 Message Stream

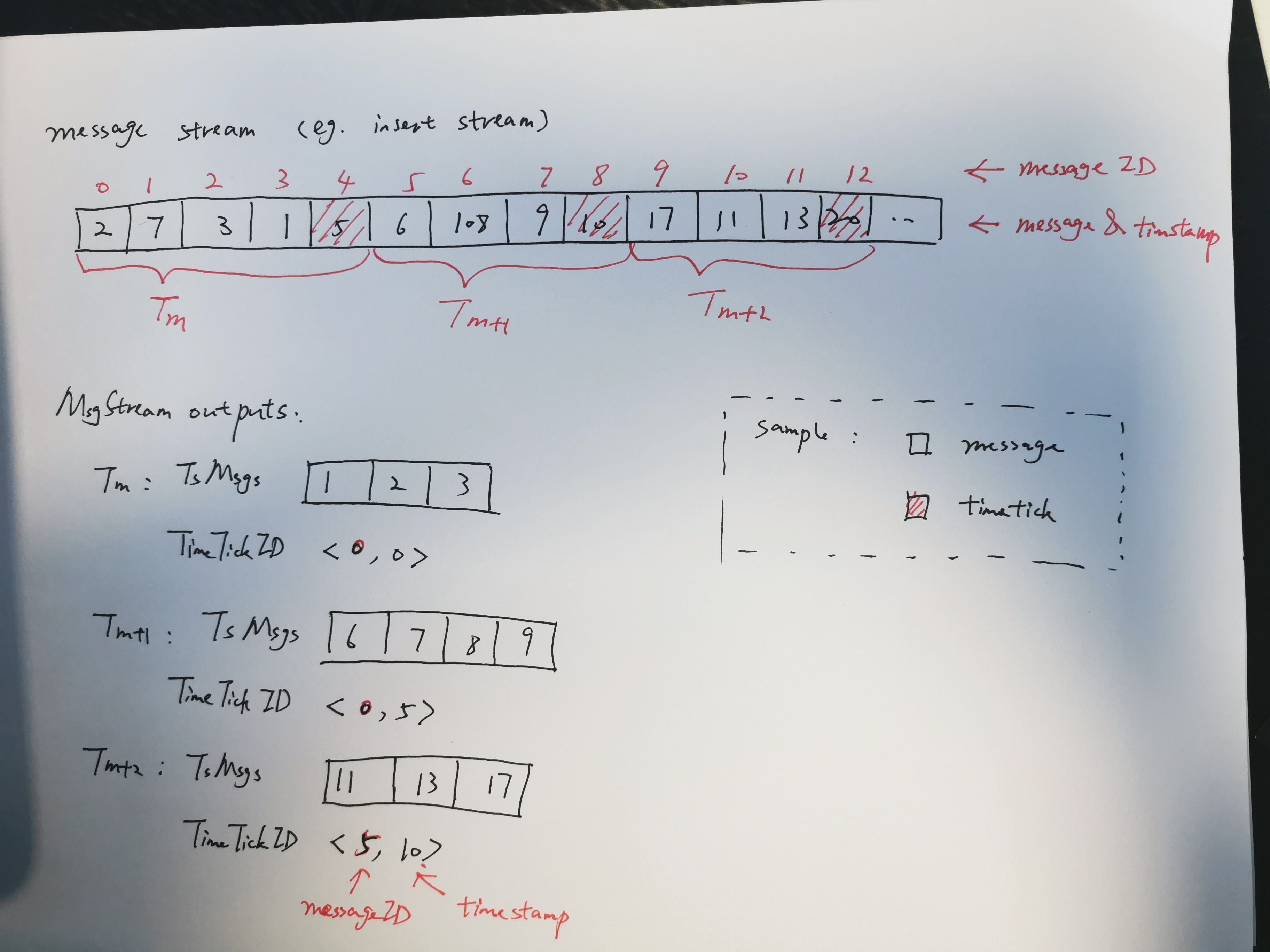

• Overview

• Interface

type MsgType uint32
const {
  kInsert MsgType = 400
  kDelete MsgType = 401
  kSearch MsgType = 500
  kSearchResult MsgType = 1000

  kSegStatistics MsgType = 1100

  kTimeTick MsgType = 1200
  kTimeSync MsgType = 1201
}

type TsMsg interface {
  SetTs(ts Timestamp)
  BeginTs() Timestamp
  EndTs() Timestamp
  Type() MsgType
  Marshal(*TsMsg) []byte
  Unmarshal([]byte) *TsMsg
}

type MsgPosition {
  ChannelName string
  MsgID string
  TimestampFilter Timestamp
}

type MsgPack struct {
  BeginTs Timestamp
  EndTs Timestamp
  Msgs []TsMsg
  StartPositions []MsgPosition
  EndPositions []MsgPosition
}

type MsgStream interface {
  Produce(*MsgPack) error
  Broadcast(*MsgPack) error
  Consume() *MsgPack // message can be consumed exactly once
  ShowChannelNames() []string
  Seek(offset MsgPosition) error
}

type RepackFunc(msgs []* TsMsg, hashKeys [][]int32) map[int32] *MsgPack

type PulsarMsgStream struct {
  client *pulsar.Client
  repackFunc RepackFunc
  producers []*pulsar.Producer
  consumers []*pulsar.Consumer
  unmarshal *UnmarshalDispatcher
}

func (ms *PulsarMsgStream) CreatePulsarProducers(topics []string)
func (ms *PulsarMsgStream) CreatePulsarConsumers(subname string, topics []string, unmarshal *UnmarshalDispatcher)
func (ms *PulsarMsgStream) SetRepackFunc(repackFunc RepackFunc)
func (ms *PulsarMsgStream) Produce(msgs *MsgPack) error
func (ms *PulsarMsgStream) Broadcast(msgs *MsgPack) error
func (ms *PulsarMsgStream) Consume() (*MsgPack, error)
func (ms *PulsarMsgStream) Start() error
func (ms *PulsarMsgStream) Close() error

func NewPulsarMsgStream(ctx context.Context, pulsarAddr string) *PulsarMsgStream


type PulsarTtMsgStream struct {
  client *pulsar.Client
  repackFunc RepackFunc
  producers []*pulsar.Producer
  consumers []*pulsar.Consumer
  unmarshal *UnmarshalDispatcher
  inputBuf []*TsMsg
  unsolvedBuf []*TsMsg
  msgPacks []*MsgPack
}

func (ms *PulsarTtMsgStream) CreatePulsarProducers(topics []string)
func (ms *PulsarTtMsgStream) CreatePulsarConsumers(subname string, topics []string, unmarshal *UnmarshalDispatcher)
func (ms *PulsarTtMsgStream) SetRepackFunc(repackFunc RepackFunc)
func (ms *PulsarTtMsgStream) Produce(msgs *MsgPack) error
func (ms *PulsarTtMsgStream) Broadcast(msgs *MsgPack) error
func (ms *PulsarTtMsgStream) Consume() *MsgPack //return messages in one time tick
func (ms *PulsarTtMsgStream) Start() error
func (ms *PulsarTtMsgStream) Close() error

func NewPulsarTtMsgStream(ctx context.Context, pulsarAddr string) *PulsarTtMsgStream

type MarshalFunc func(*TsMsg) []byte
type UnmarshalFunc func([]byte) *TsMsg


type UnmarshalDispatcher struct {
	tempMap map[ReqType]UnmarshalFunc
}

func (dispatcher *MarshalDispatcher) Unmarshal([]byte) *TsMsg
func (dispatcher *MarshalDispatcher) AddMsgTemplate(msgType MsgType, marshal MarshalFunc)
func (dispatcher *MarshalDispatcher) addDefaultMsgTemplates()

func NewUnmarshalDispatcher() *UnmarshalDispatcher

A.4 RocksMQ

RocksMQ is a RocksDB-based messaging/streaming library.

// All the following UniqueIDs are 64-bit integer, which is combined with timestamp and increasing number

type ProducerMessage struct {
  payload []byte
}

type ConsumerMessage struct {
  msgID UniqueID
  payload []byte
}

type IDAllocator interface {
	Alloc(count uint32) (UniqueID, UniqueID, error)
	AllocOne() (UniqueID, error)
	UpdateID() error
}

// Every collection has its RocksMQ
type RocksMQ struct {
    store       *gorocksdb.DB
	kv          kv.Base
	idAllocator IDAllocator
	produceMu   sync.Mutex
	consumeMu   sync.Mutex
}

func (rmq *RocksMQ) CreateChannel(channelName string) error
func (rmq *RocksMQ) DestroyChannel(channelName string) error
func (rmq *RocksMQ) CreateConsumerGroup(groupName string) error
func (rmq *RocksMQ) DestroyConsumerGroup(groupName string) error
func (rmq *RocksMQ) Produce(channelName string, messages []ProducerMessage) error
func (rmq *RocksMQ) Consume(groupName string, channelName string, n int) ([]ConsumerMessage, error)
func (rmq *RocksMQ) Seek(groupName string, channelName string, msgID MessageID) error

func NewRocksMQ(name string, idAllocator IDAllocator) (*RocksMQ, error)

A.4.1 Meta (stored in Etcd)

// channel meta
"$(channel_name)/begin_id", UniqueID
"$(channel_name)/end_id", UniqueID

// consumer group meta
"$(group_name)/$(channel_name)/current_id", UniqueID

A.4.2 Data (stored in RocksDB)

• data

"$(channel_name)/$(unique_id)", []byte
